Every rotational grazier asks the same question before buying a solar fence charger: how many joules do I actually need for my acreage? The marketing copy on most chargers gives you a single "up to X miles" number that's measured under ideal conditions you'll never replicate on a working pasture. This guide walks you through how to size a solar electric fence charger for your operation — with a joule-to-acres decision table, the four variables that change the math, and what to do when you're between sizes.
The quick answer
If you want a single rule of thumb: plan on .5 to 1 output joule per mile of fence wire, with a 50% safety margin on top. For most rotational grazing operations that translates to:
- Under 10 acres / small paddocks: 0.5–1 joule
- 10–40 acres / medium operation: 1–3 joules
- 40–160 acres / large rotation: 3–6 joules
- 160+ acres / commercial scale: 6+ joules
That's the back of napkin version. The rest of this guide is about the variables that push you up or down within those ranges — because vegetation, wire type, multi-strand setups, and soil conditions can double the joules you actually need.

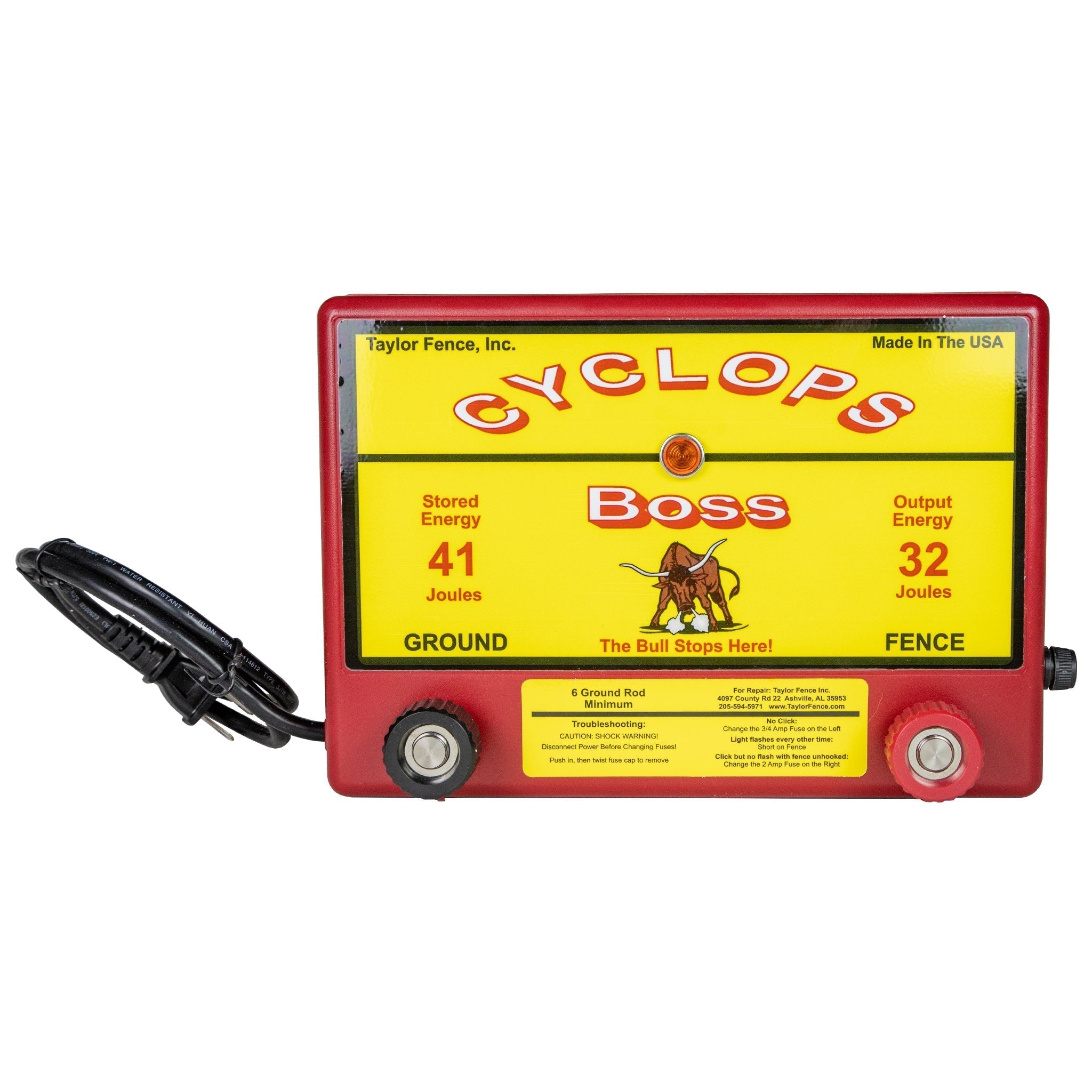

Stored joules vs. output joules — read the spec sheet carefully
Charger manufacturers advertise two different joule numbers, and only one of them matters for sizing.
Stored joules is the energy the charger holds in its capacitor before discharge. It's the bigger, sexier number on the box. Output joules is the energy that actually reaches the fence wire — typically 60–80% of stored. Output joules is what you size against. Cross-reference the spec sheet, not the front of the box.
The four variables that change the math
1. Vegetation load
A clean fence line in dry conditions draws almost nothing. A fence line with wet grass touching it pulls voltage down fast. Heavy weed pressure can double or triple the joules you need to maintain a livestock-controlling 5,000+ volts on the wire. If you're not mowing your fence line, size up one bracket.
2. Wire type and conductivity
Not all polybraid is equal. Mixed-metal conductors (like Super 9 polybraid — 6 stainless + 3 tinned copper) have about 10x less resistance per foot than pure stainless or galvanized wire. That means a 1-joule charger on Super 9 reaches the same end-of-fence voltage as a 2-joule charger on cheaper wire. Better wire = smaller charger budget.
3. Multi-strand setups
Every additional hot strand multiplies the wire length your charger powers. A 1-mile, 3-strand fence is electrically a 3-mile fence. If you run multi-strand (common for sheep, goats, and predator-aware horse setups), multiply your linear fence distance by the strand count when sizing.
4. Soil and grounding
The charger is only half the system — the ground rods are the other half. Even the biggest joule rating fails if the ground rods can't return current. Rule of thumb: 3 feet of ground rod per output joule, with rods spaced 10 feet apart. A 6-joule charger needs 18 linear feet of ground rod — typically three 6-foot rods or four 5-footers. Skimping here is the #1 reason a properly sized charger underperforms.
The sizing table
Cross-reference your operation against the table below. These ranges assume clean fence lines, mixed-metal polybraid, and properly grounded systems. Push up one row if you have heavy vegetation, cheap wire, or multi-strand setups.
| Operation size | Linear fence wire | Output joules needed | Solar panel watts | Example |
|---|---|---|---|---|
| Backyard / 1–5 acres | Under 1 mile | 0.5 joule | 15–25W | Gallagher S6 |
| Small farm / 5–20 acres | 1–3 miles | 1 joule | 25–50W | Gallagher S100 |
| Mid-size operation / 20–80 acres | 3–10 miles | 2–3 joules | 50–80W | Gallagher S200 |
| Large rotation / 80–200 acres | 10–25 miles | 3–6 joules | 80–140W | Gallagher S400 |
| Commercial / 200+ acres | 25+ miles | 6+ joules | 140W+ or AC mains | Step up to AC mains energizer |
Solar-specific considerations
Battery sizing matters as much as the charger
A solar charger is a solar panel + battery + energizer. The battery has to hold enough capacity to run the energizer through the longest cloudy stretch you expect. Most quality solar units come with a 12-volt deep cycle in the 30–100 amp-hour range — confirm the included battery is sized for at least 5–7 days of autonomy (run time without sun) for your charger's draw.
Panel wattage vs. charger joules
A common mistake is buying a powerful charger with an undersized solar panel. A 50W panel can't keep up with a 6-joule energizer in November. As a starting point, plan on 15–20 watts of solar per output joule at your latitude — more if you're north of the 40th parallel or in a high-cloud-cover region.
Winter performance
Solar fence chargers are most strained in December–February when day length is short and the panel may be partially snow-covered. Either oversize the system by one bracket for year-round reliability, or plan to bring it inside and switch to a battery-only mode during the depth of winter.
Three real-world sizing examples
Example 1: 15 acres of strip grazing, dairy cattle
A typical rotational dairy operation moves cattle through 1-acre paddocks daily on a half-mile linear perimeter with a single hot wire. Wire load is roughly 0.5 miles single-strand. A 1-joule solar charger with a 25–50W panel is plenty — the Gallagher S100 or Speedrite SX1 with a small panel covers this without breaking a sweat.
Example 2: 80 acres of beef rotational grazing, weedy ground
Eight 10-acre paddocks, perimeter and cross-fences total roughly 5 miles of single-strand polybraid. Vegetation pressure is high (no mowing). Base requirement is 5 joules; vegetation pushes that to 7+. A 3-joule solar may run hot in summer; better to step up to a 6-joule solar with 100W+ panel, like the Gallagher S400. Or run a 6-joule AC mains unit if grid power reaches the central pasture.
Example 3: 12 acres of sheep, 4-strand portable fencing
Four strands × half-mile perimeter = 2 miles electrical load. Sheep need a strong shock to overcome wool insulation — minimum 3,000 volts on the wire. A 2–3 joule solar charger with a 50W panel handles this, and the EverGraze sheep & goat netting is a faster-deployment alternative for similar acreage.
What to do if you're between sizes
Round up, every time. A charger working at 30% of capacity lasts longer, runs cooler, and gives you headroom for vegetation growth, wire additions, and the inevitable scope creep when one paddock turns into three. The cost difference between a 1-joule and 3-joule unit is usually $100–200; the cost of an underpowered charger failing on a Sunday afternoon is much higher.
The grounding system is half the answer
One more time, because this gets skipped: your charger is only as good as your ground rods. Plan 3 feet of ground rod per output joule, 10 feet apart, in moist soil. If your soil is rocky, sandy, or seasonally dry, add rods until a voltmeter at the last ground rod reads no more than 0.3 kV when the fence is heavily shorted. The Range Ward Power Hammer is the easiest way to drive rods without a sledgehammer.
