Electric Fence Troubleshooting: A Voltmeter-Reading Decision Tree (Find the Voltage Drop in 15 Minutes Without Guessing)

You walk out to the back paddock, touch the voltmeter to the fence, and instead of the 7,000 volts you put up two months ago, you're reading 2,400. The cows are still in — but they won't be tomorrow.

Most "my electric fence isn't working" calls are really voltage-drop calls. The energizer is fine. The wire is fine. Something between the energizer and the last post is bleeding current to the ground, and the trick is to find it without walking every foot of fence.

This guide gives you a decision tree built around the one number you can read in 30 seconds: the voltage at the fence terminal. What that number tells you, what to check next, and the field fix for each of the five most common causes — in the order they actually show up on working ranches.

If you're rebuilding from scratch instead of repairing, start with our complete guide to building electric fence and our charger sizing guide. If your fence has always worked and just slowly degraded, this is the right page.

Need to look up the underlying specs? See the electric fence energizer technical reference — joule sizing tables, voltage targets by species, grounding math, and the IEC/USDA standards behind the spec sheets.

The 30-second test that tells you where to start

Before you walk a single foot of fence, do this:

1. Take a digital fence voltmeter and a metal probe (most voltmeters include the earth probe — drive it into the soil 8–10 inches deep).
2. Touch the meter to the first hot wire at the energizer output, not at the fence end. You want to know what the energizer is putting out, separately from what the fence is losing.
3. Write the number down.
4. Now walk to the far end of the fence and take a second reading at the last accessible hot wire.

Two numbers. That's the whole diagnostic.

If the first reading is below 5,000 V, your problem is at the energizer end (charger, battery, grounding system, or a short right next to the output). You don't need to walk the fence yet.

If the first reading is good (6,500+ V) but the far-end reading is much lower, the problem is somewhere along the fence line. Now you walk.

Most "fence broken" emergencies fit one of those two patterns. The decision tree below tells you what to do with each.

The voltmeter-reading decision tree

Use whichever reading is lower (energizer or far-end) to enter the tree. Voltage targets vary slightly by species — small ruminants and predators on a netting fence need higher voltage than cattle on a permanent perimeter — but these working bands apply almost everywhere.

Reading: 0 volts

What it means: No pulse is reaching the wire. Either the energizer isn't running, the output cable is disconnected, or there's a direct short loading the system to zero.

Check in this order:

• Is the energizer plugged in / battery connected? Is the indicator light pulsing?
• Pull the output wire off the energizer terminal entirely. Re-read voltage at the terminal post of the energizer with nothing connected. If you now get 6,000+ V, the fence is shorted. If you still get 0, the energizer is dead.
• If the energizer is dead, test the power source: 120 V outlet with a multimeter, or 12 V battery under load (a fence energizer pulls peak amps — a battery that reads 12.6 V at rest can still collapse to 9 V under a real pulse).

Likely fix: Replace battery, reset GFCI breaker, or shop a replacement energizer.

Reading: 1,000 – 3,000 V

What it means: The energizer is pulsing but a major load is dragging it down. This is the classic "vegetation grew faster than I walked the fence" pattern, or a fallen wire on a steel T-post, or a gate left closed on a hot wire.

Check in this order:

• Walk the fence in the most-recently-worked paddock first. 80% of voltage-dragging shorts are within 100 feet of where the rancher was last doing something (a gate, a corner, a moved reel).
• Listen for snapping as you walk. A loaded short audibly arcs — a steady tick, tick, tick, in time with the energizer pulse.
• Look for: green vegetation laid across the wire, wire touching a steel post or wet wooden post, a gate handle dropped against a metal gate, a polybraid that broke and is lying on the ground.
• Cut-off switches are the cheat code here. If you have cut-off switches installed between paddocks, flip half the fence off and re-read voltage. The voltage will rebound in the half that doesn't contain the short. Repeat — divide and conquer — until you find the loaded section.

Likely fix: Cut the vegetation. Lift the wire off the metal. Replace the dropped gate handle. Splice the broken polybraid with a split bolt connector or Gripple-style joiner.

Reading: 3,000 – 5,000 V

What it means: The fence is functional for trained cattle but underperforming. This is usually a grounding problem or a high-resistance connection somewhere — not a dead short.

A small ruminant fence, a predator-deterrent setup, or any fence with thick winter coats on the livestock needs to be in the 5,500+ V range to actually hurt. At 3,000–5,000 V, the animal feels it but the lesson doesn't stick.

Check in this order:

• Test the ground system. Turn the energizer off, lay a steel pipe across the fence about 300 ft from the energizer to force a hard short, turn the energizer back on, and read voltage at the last ground rod (not the fence). It should read less than 300 V. If it's higher, your ground system isn't returning the pulse — you need more ground rods, deeper rods, or a wetter location. The grounding collection has the 6' x 5/8" galvanized rods and bronze ground rod clamps most ranches need.
• Inspect every connection between the energizer and the fence. Loose clamps, rusty splices, and wire-nut connections that worked fine in dry weather will quietly drop 1,000–2,000 V once they corrode. Replace any non-mechanical splice with a split bolt or a crimp sleeve.
• If grounding and connections check out, suspect the conductor. A 9-strand mixed-metal polybraid carries the pulse 5–10× farther than a 9-strand stainless, and old polywire with corroded internal strands drops voltage in long runs. See our fence wire buyer's guide for the comparison.

Likely fix: Add ground rods (the rule of thumb is 3 feet of rod per joule of energizer output). Re-clamp questionable splices. Upgrade the conductor on long runs.

Reading: 5,000 – 7,000 V

What it means: You're inside the working band for cattle on a permanent perimeter, but you're losing ground compared to where the fence was when you built it. Time for preventive maintenance, not emergency repair.

Check in this order:

• Compare today's reading to the reading when the fence was new. A 1,500 V drop over a year is normal seasonal wear. A 1,500 V drop over a week is a developing fault — find it before it becomes an animal-out problem.
• Walk the line looking for early-stage shorts: vegetation that hasn't quite contacted the wire yet, a hairline crack in a gate insulator, a ground rod clamp that's loosened.

Likely fix: Trim vegetation, snug up clamps, replace marginal insulators before they fail.

Reading: 7,000+ V

What it means: Your fence is healthy. Don't touch it.

If you're reading 7,000+ V everywhere along the fence and the livestock are still escaping, the problem isn't voltage — it's training (an animal that doesn't respect the fence), height (a small animal crawling under, a tall animal stepping over), or geometry (the gate isn't closed). Voltage is a non-issue.

The 5 most common voltage-drop causes (ranked by how often they actually happen)

After thirty years of supplying ranchers and graziers, this is the frequency order we see, and it's nearly the opposite of how most troubleshooting guides list them.

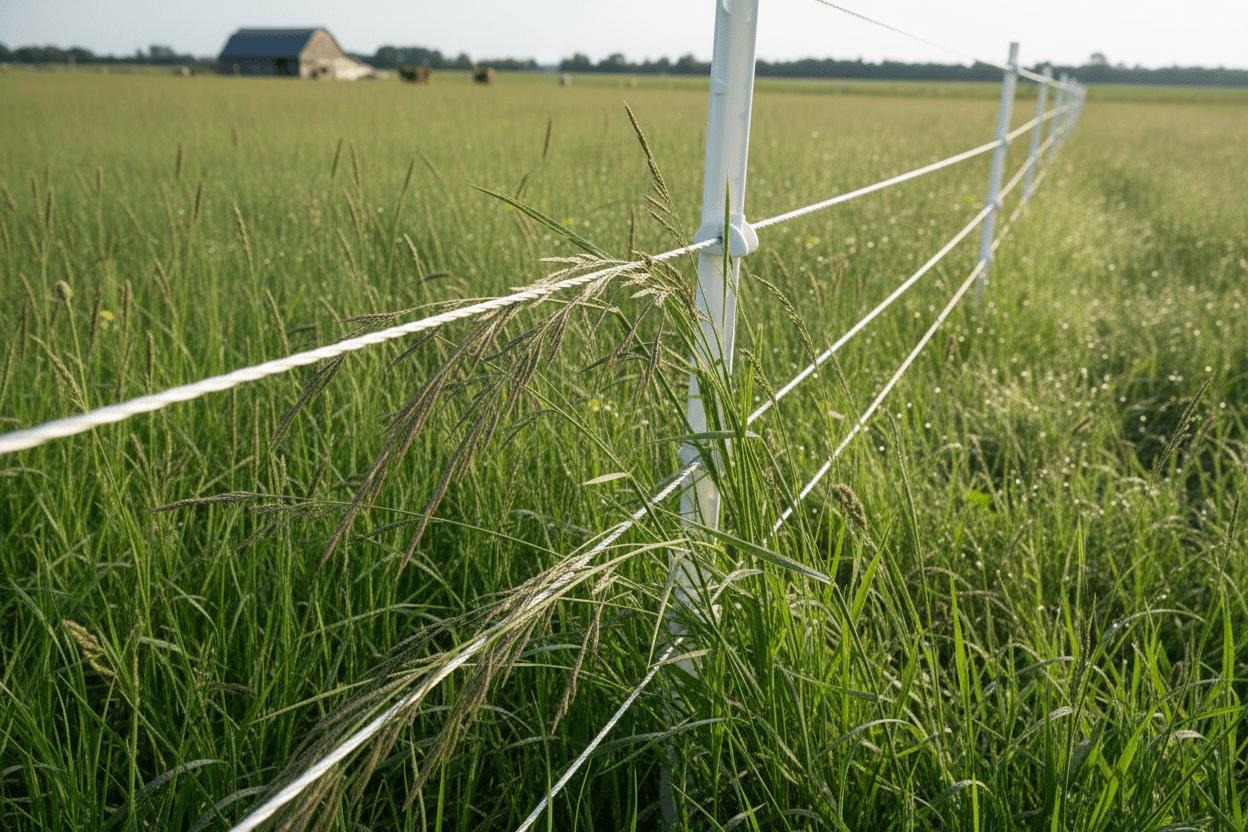

1. Vegetation contact (about 40% of all calls). Grass and weeds growing into the wire are the single largest cause of voltage drop in summer, especially after a wet week. A green leaf touching a hot wire is a continuous short — the moisture conducts current straight to the ground.

2. Connection failure at a splice, clamp, or terminal (about 25%). Most splices that worked in year one quietly degrade. Wire nuts loosen. Rusted clamps lose contact. The classic symptom is a fence that reads good at the energizer but lousy at the far end. Replace every non-mechanical splice with a proper clamp or a split bolt.

3. Inadequate or aged grounding (about 20%). Most fences are under-grounded from the day they're built. The rule is 3 feet of galvanized ground rod per joule of energizer output, with rods spaced at least 10 feet apart in permanently moist soil. Most ranches have 1 or 2 rods total. Add more.

4. Wire-to-metal short (about 10%). A polybraid touching a steel T-post (insulator failed), a hot wire resting on a wet wooden post, a gate handle dropped against a metal gate. These are typically findable by walking and listening for the audible arc.

5. Energizer or battery weakness (about 5%). Solar batteries that have been deep-discharged enough times. Plug-in energizers near the end of their service life. AC energizers running on a brownout-prone circuit. This is the last thing to suspect, not the first — but if everything else checks out, the energizer is the answer.

When the meter alone won't find the short

Sometimes you've got a 3,500 V reading everywhere, no obvious vegetation, the grounding tested fine, and you can't see anything wrong walking the fence. That's where the systematic tools come in.

The cut-and-conquer method

This is the fastest way to narrow down a long-fence fault.

If you have cut-off switches installed every quarter mile or so:

1. Turn off the switch at the midpoint of the fence.
2. Read voltage at the energizer end. If it rebounds (say, from 3,500 V to 6,500 V), the fault is in the off half. If it stays low, the fault is in the on half.
3. Repeat with the next switch — keep cutting the suspect half in half until you've isolated a short section. Then walk that section visually.

If you don't have cut-off switches, do the same thing the slow way: voltage reading every 330 feet (or every gate, whichever comes first). The voltage will drop steadily until you reach the fault, then stabilize. The fault is between the last drop and the stabilization point.

The directional fault finder

The best tool for long-fence fault finding is a digital fault finder like the Gallagher Fence Fault Finder. It reads voltage and current, and the arrow on the display points you toward the fault.

Touch the meter to the wire and walk the direction the arrow points. The current reading climbs as you get closer to the short. When you walk past the fault, the arrow reverses and the current drops. The short is between your last two readings.

A fault finder turns a half-day fence walk into a 15-minute job. It's the single best ROI for any operation with more than a quarter mile of electric fence.

The portable radio trick

Old school but it works. Tune an AM radio to a non-station spot in the high end of the dial, turn the volume up, and walk the fence. The pulse creates electrical noise the radio picks up — and the noise gets louder near a short. Free, doesn't need batteries you didn't already have, surprisingly effective for finding the general area of a small arc you can't otherwise hear.

The fence alert (for fences you can't walk daily)

If the fence is across the highway, three pastures over, or otherwise hard to check, a Speedrite Fence Alert flashes when voltage drops below a threshold. Visible up to a mile away. You see the flash from the truck, you go fix the fence. Much better than finding cattle in the road.

Seasonal and environmental factors that change the diagnosis

The same fence reads different numbers in different conditions. Knowing why prevents you from chasing phantom faults.

Frozen ground (winter). Dry frozen soil conducts poorly. Your grounding system is effectively reduced — you'll read lower voltage in January than in July even with no physical change to the fence. Solution: add more ground rods, or use a "ground-return" wire (one of the fence wires connects back to the ground terminal so the animal completes the circuit through the wires, not through the soil).

Drought (dry sandy soil). Same problem as frozen ground. Sandy soil with no moisture is a poor return path. Water the ground rods if you have to — a 5-gallon bucket dumped at each rod can restore 1,000–1,500 V in summer drought.

Lightning storm aftermath. A nearby strike (doesn't have to be a direct hit) can damage the energizer's output transistors, even with surge protection. If voltage suddenly dropped after a thunderstorm, check the energizer first. Install a lightning diverter and check the full lightning protection collection to prevent the next one.

Mid-summer growth surge. Grass that didn't touch the wire on June 1 can be three inches above it on June 14. A fence that read 7,200 V on Memorial Day weekend can read 3,400 V two weeks later with no physical change. Mow the fence line.

Your troubleshooting toolkit (5-item field kit)

Keep these in the truck:

1. Digital fence voltmeter or fault finder. Voltage only is fine for small operations; a fault finder pays for itself the first time you save a half-day walking a mile of perimeter. Browse the volt meter collection and fault finder collection.
2. Jumper lead connectors (alligator clips). For temporary bypasses while you isolate a section. Also useful for testing if a damaged section is the problem — clip past it and see if voltage recovers.
3. Split bolt connectors and a roll of crimp sleeves. For making permanent splices in the field, not temporary twists that will fail in a month.
4. A spare ground rod and bronze clamp. Most grounding-related calls are "add a third rod." Carrying one means the fix is one trip.
5. A pair of insulated linesmen's pliers and a roll of Insultube. For protecting wire at gate crossings or anywhere the conductor passes near grounded metal.

If your fence is on weekly battery rotations, also carry a charged spare battery and a basic 12 V multimeter.

When the fix isn't on the fence

A few situations don't fit the decision tree:

• The energizer is undersized for the fence. A 1-joule energizer trying to power 5 miles of fence will read low voltage even with perfect grounding and no shorts. Our charger sizing guide walks through the math; the energizers collection covers the upgrade options.
• The fence is genuinely too long for any energizer you can buy. Above about 25 miles of fence, even big mains energizers (40+ joules) will struggle. Split the fence into segments with cut-off switches, or add a second energizer at the far end.
• The conductor is wrong for the run length. Standard polywire will drop voltage badly over 1,000+ feet. A 9-strand mixed-metal polybraid carries the pulse 5–10× farther. If you have a long run and bad voltage, the conductor might be the answer.

Bottom line

Voltage drop on an electric fence is almost always one of five things, in this order of probability: vegetation, connection failure, grounding, wire-to-metal short, or energizer weakness. The fastest way to narrow it down is to read your voltmeter at the energizer and at the far end of the fence, use the gap between those two numbers to decide where to walk first, and use cut-off switches or a directional fault finder to isolate the section that's bleeding current.

Spending 15 minutes with the right diagnostic in your hand beats spending half a day walking a five-mile perimeter every time.
