Stock Tank Float Valve Buyer's Guide: Why Jobe Megaflow Outperforms Standard Float Valves on Working Cattle Operations

The float valve in your stock tank is the cheapest piece of equipment on your water system, and the one that determines whether the herd has water at 6 am tomorrow. When it fails — and they all fail eventually — cattle stop drinking, milk production drops, weight gain stops, and you discover the problem when you go to check on something else and find a dry tank with twenty unhappy cows around it.

The float valves at the farm store are sized for a 5-gallon residential application. They flow at 4-8 gallons per minute on average household water pressure, which is fine for a goldfish bowl and inadequate for a 100-cow herd that just walked in from a hot afternoon and drained the tank to refill.

This guide covers what to look for in a float valve sized for working livestock operations, why the Jobe Megaflow line dominates the agricultural market, when to use which size, and the install tips that determine whether the valve lasts 6 months or 15 years.

If you're building a complete livestock water system from scratch, also see our HDPE pipe fittings buyer's guide. If you've decided on the system and you just need to pick the float valve, this is the right page.

What makes a livestock float valve different

A residential float valve has one job: shut off water flow when the tank is full. A livestock float valve has three:

1. Shut off water flow at full — same as residential
2. Open at high flow rate when the tank is drawn down — because cattle drink fast and the tank has to refill before the next animal arrives
3. Survive being splashed, kicked, frozen, and exposed to UV for 10+ years — because there's no maintenance window to replace it on schedule

The third requirement is where most consumer float valves fail. A plastic Hudson valve from the farm-store aisle has a brass float arm that breaks the first time a 1,400-pound cow leans into it. The seals dry out in summer heat and crack. The float ball gets punctured by hoof contact and stops sensing water level.

The agricultural-grade float valves are engineered for the use case. Reinforced housings, armless designs (less to break), UV-stabilized materials, larger orifice for high-flow refill, and pressure ranges suited to gravity-fed and pump-fed agricultural water systems.

The Jobe Megaflow line (the agricultural standard)

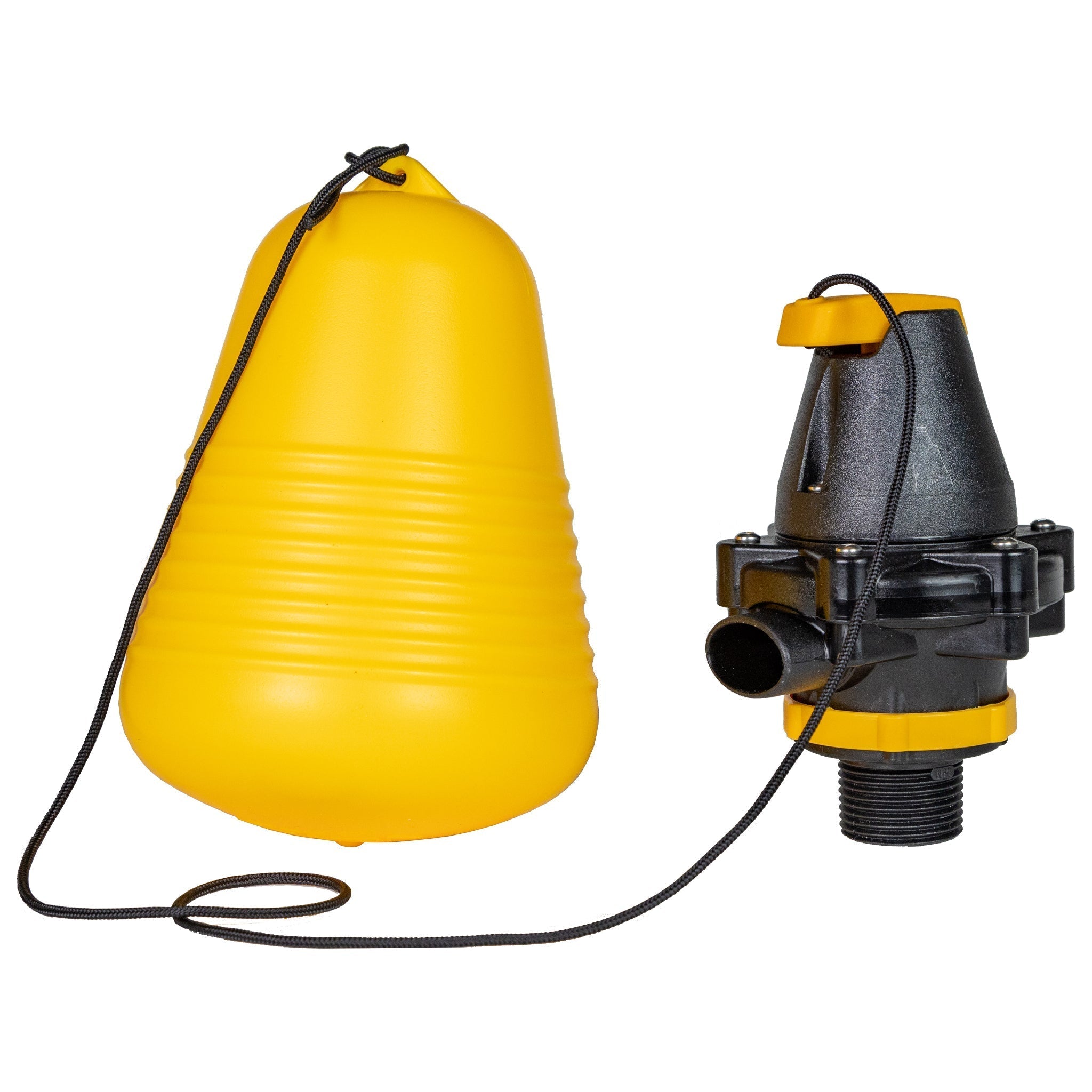

Jobe Megaflow valves are the dominant float-valve product in North American agricultural water. New Zealand-engineered originally for high-volume dairy applications, the Megaflow design centers on three features:

1. Armless float — the float is on a fixed bracket rather than a long lever arm. There's no breakable arm; nothing for cattle to lean into and snap off.
2. High flow rate — Megaflow valves flow 15-25+ gallons per minute at typical pressure, vs 4-8 GPM for residential valves. Refills a 100-gallon trough in 5 minutes vs 15-25.
3. Wide pressure range — rated 5-150 psi, handling everything from gravity-fed tank systems to high-pressure pump installations.

Powerflex stocks the volume sizes:

• Jobe Megaflow Water Valve 3/4" Long Tail — 3/4" threaded inlet, long-tail configuration for bottom-of-tank mounting. The most common size on small-to-medium operations and rotational grazing systems.
• Jobe Megaflow Water Valve 1" Short Tail — 1" threaded inlet, short-tail for side-of-tank mounting. Used on larger operations or where the trough geometry favors side-entry plumbing.

For replacement parts, the Jobe Megaflow Yellow Float is the standard replacement float ball — order a spare with the valve and you avoid the 3-day wait when the original gets damaged.

For UV-stabilized long-tail and shorttail options, see the full Jobe Valves collection.

Sizing the valve to the trough and the herd

The wrong-size float valve is the most common installation error. Three factors drive sizing:

Herd size and drinking pattern

Cattle drink in waves — they come to water as a herd, drink heavily for 5-10 minutes, and leave together. A 100-cow herd can collectively pull 200-400 gallons in a single visit. The float valve has to refill the trough between visits, not during them — and the time between visits in hot weather can be as short as 2-3 hours.

Rule of thumb: - Under 50 head: 3/4" float valve adequate, sized to refill in 10-15 minutes - 50-150 head: 1" float valve, refills in 5-10 minutes - 150+ head: 1" or larger, often paired with two valves on opposite sides of a long trough to refill faster

Water pressure

Agricultural water systems run a wide pressure range:

• Gravity-fed (elevated tank, 10-30 ft of head): 5-15 psi. Requires a low-pressure-rated valve. Jobe Megaflow handles this band well.
• Pump-fed standard (50-80 psi): Most agricultural pump systems. Standard Megaflow sizing applies.
• High-pressure pump (100-150 psi): Some commercial-scale operations. Confirm the valve is rated for the upper end of your system.

The Jobe Megaflow line's 5-150 psi rating covers the full agricultural spectrum without specifying separate models for each pressure band.

Trough geometry

The valve has to physically fit the tank and operate without interference:

• Long-tail valves mount through the bottom of the tank or low on the side, with the float positioned on the surface above. Used on traditional tanks where bottom-entry plumbing is the standard.
• Short-tail valves mount through the side wall of the tank, with the float on a short bracket. Used on portable tanks, transport tanks, and applications where the bottom of the tank is sitting on the ground.

Picking the wrong tail length means the float either bottoms out in the tank (long-tail in a shallow tank) or doesn't reach the water surface (short-tail in a deep tank). Match the configuration to the trough before ordering.

Other float valve options Powerflex stocks

While Jobe Megaflow is the volume seller for cattle operations, three other configurations cover specific use cases:

Powerflex Trough Valve (3/4")

• Water Trough Valve 3/4" — Powerflex's economy 3/4" trough valve. Reliable shut-off, simpler design than Megaflow, lower cost. Good fit for small operations, secondary troughs, and applications where the high-flow refill of the Megaflow isn't required.

Philmac shut-off ball valves (for system isolation, not float control)

Different product category — these aren't float valves but rather inline shut-off valves used to isolate sections of the water system for maintenance. The 1-1/2" Philmac Shut-Off Ball Valve and the full Ball Valves collection cover this need.

Quick coupler valves

• Quick Coupler Valve — in-ground access valve for hoses or sprinklers along the supply line. Not a float valve, but pairs with the float valve system on operations that need on-demand water access at multiple points.

Browse the full Valves & Floats collection for the complete lineup.

Installation: what kills float valves early

Three installation errors cause 90% of premature float valve failures:

1. Water-hammer damage on first installation

When you first turn on the water after installing a new valve, the empty pipe fills rapidly and creates a pressure shock when the valve closes. This water-hammer can damage the valve seat on the first cycle and cause it to leak from day one.

Fix: Partially close the inline shut-off valve (not the float valve itself) during initial fill so water enters the trough at a controlled rate. Once the trough is at operating level and the float has closed, fully open the shut-off and let normal cycling take over.

2. Float interference from tank geometry

Floats need clear water-surface contact to sense level. A trough with a divider, a tank with an interior baffle, or a float positioned near the inlet stream gets false readings — the float reads water that isn't actually the tank's level.

Fix: Mount the float position away from inlet streams, on a stable section of water surface. If the trough has interior structures, position the float in the largest open zone.

3. UV degradation and freeze damage on exposed valves

A float valve mounted at the top of an open tank, exposed to direct sun and freezing temperatures, fails faster than the same valve in a shaded or covered tank. UV breaks down rubber seals; freeze cycles crack plastic components.

Fix: - Use UV-stabilized valves (Jobe Megaflow line is UV-rated; cheap plastic valves are not) - Install a tank cover or float housing if direct sun is unavoidable - For freeze regions, use the tank mount adaptor configuration that allows the valve to be removed for winter or installed in a freeze-protected enclosure

How float valves fit into the complete water system

The float valve is one component of a livestock water system that typically includes:

• HDPE supply pipe from the source to the trough. See the HDPE water pipe collection.
• Compression fittings to assemble the line. See our HDPE pipe fittings buyer's guide.
• Inline shut-off valves to isolate sections. The Philmac shut-off line covers these.
• The trough itself — galvanized, polyethylene, or tire-tank construction.
• The float valve — sized to herd and pressure as above.
• Optional: tank mount adapter — the Jobe Valve Tank Mount Adaptor 3/4" eases installation in tanks not pre-drilled for valve mounting.

For the complete picture of building a livestock water system from scratch, see our HDPE pipe fittings guide and the HDPE vs PVC for livestock watering primer.

The Powerflex complete trough-valve kit (1 trough)

For a single trough installation with cattle in the 50-150 head range:

• 1 × Jobe Megaflow 3/4" Long Tail or 1" Short Tail (sized to herd and trough)
• 1 × Jobe Tank Mount Adaptor (if the tank requires it)
• 1 × spare Jobe Megaflow Yellow Float (insurance against the inevitable replacement)
• 1 × Philmac Female Tee 3/4" for tapping into the supply line
• 1 × Philmac shut-off valve inline for trough-side isolation during service
• Whatever HDPE pipe length is needed to reach the supply line

Total parts cost is typically $100-200 per trough installation. Repeat for each additional trough; multi-trough operations should standardize on the same valve model for parts interchangeability.

Bottom line

Get the size right — 3/4" for small herds, 1" for medium-to-large. Get the design right — Jobe Megaflow's armless float and high flow rate beat residential-grade valves for working livestock applications. Get the install right — controlled first-fill, clear float position, UV/freeze protection where needed.

A Jobe Megaflow valve installed correctly will hold for 10-15 years with minimal maintenance — usually one float-ball replacement halfway through and that's it. A cheap residential float valve will fail in 1-3 years and cost more in lost weight gain and emergency tank refills than the price difference of the right valve in the first place.

Powerflex's full Jobe Valves collection and the broader Valves & Floats collection cover the working livestock water market. Free shipping on orders over $150. Call 888-251-3934 if you want help spec'ing the right size for your herd and water-pressure setup — we've been outfitting agricultural water systems since 1994.
