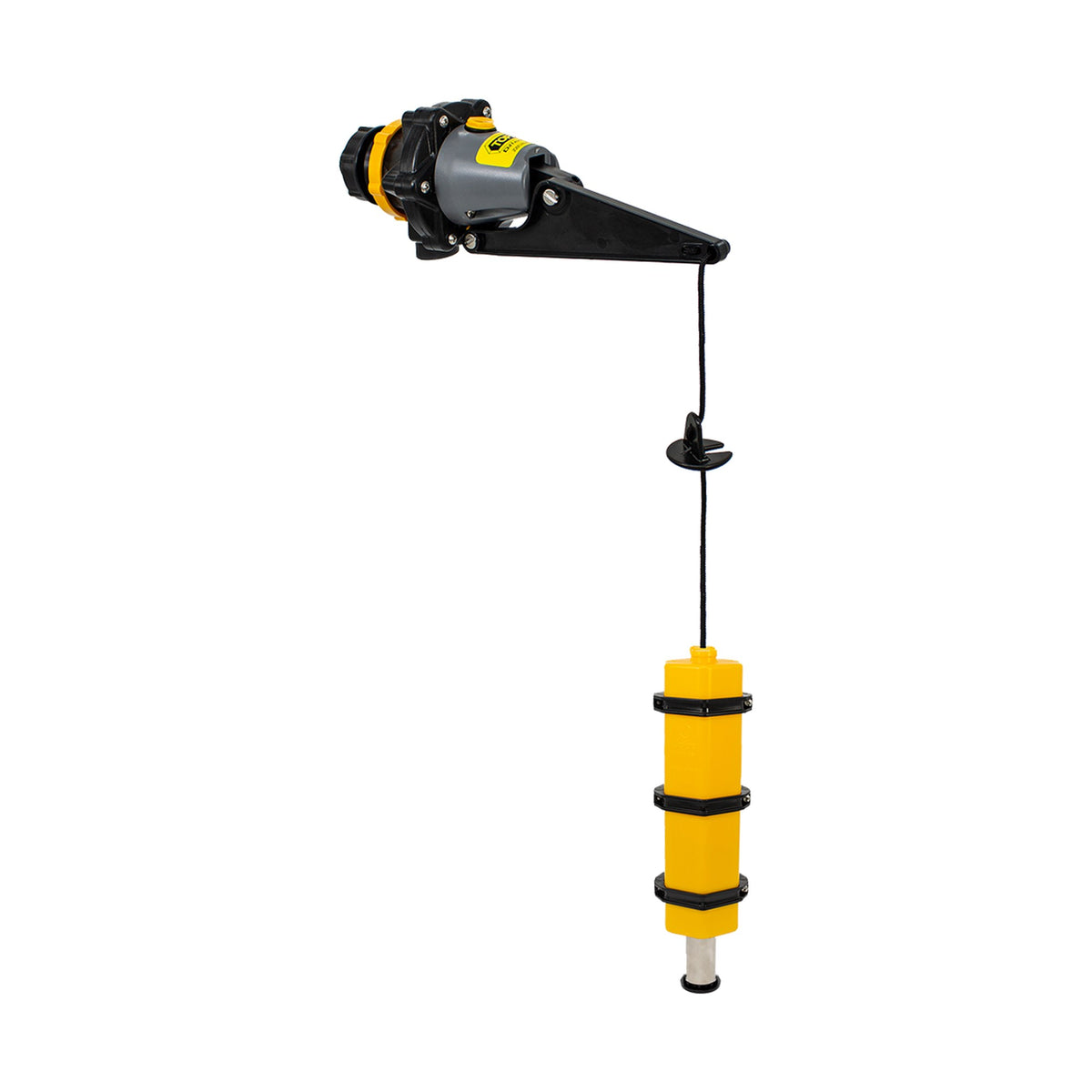

Jobe Topaz Differential float valve with weighted float and cord

Jobe Topaz Differential Float Valve

1/2" Long Tail
$294.25
$294.25
Skip to product information

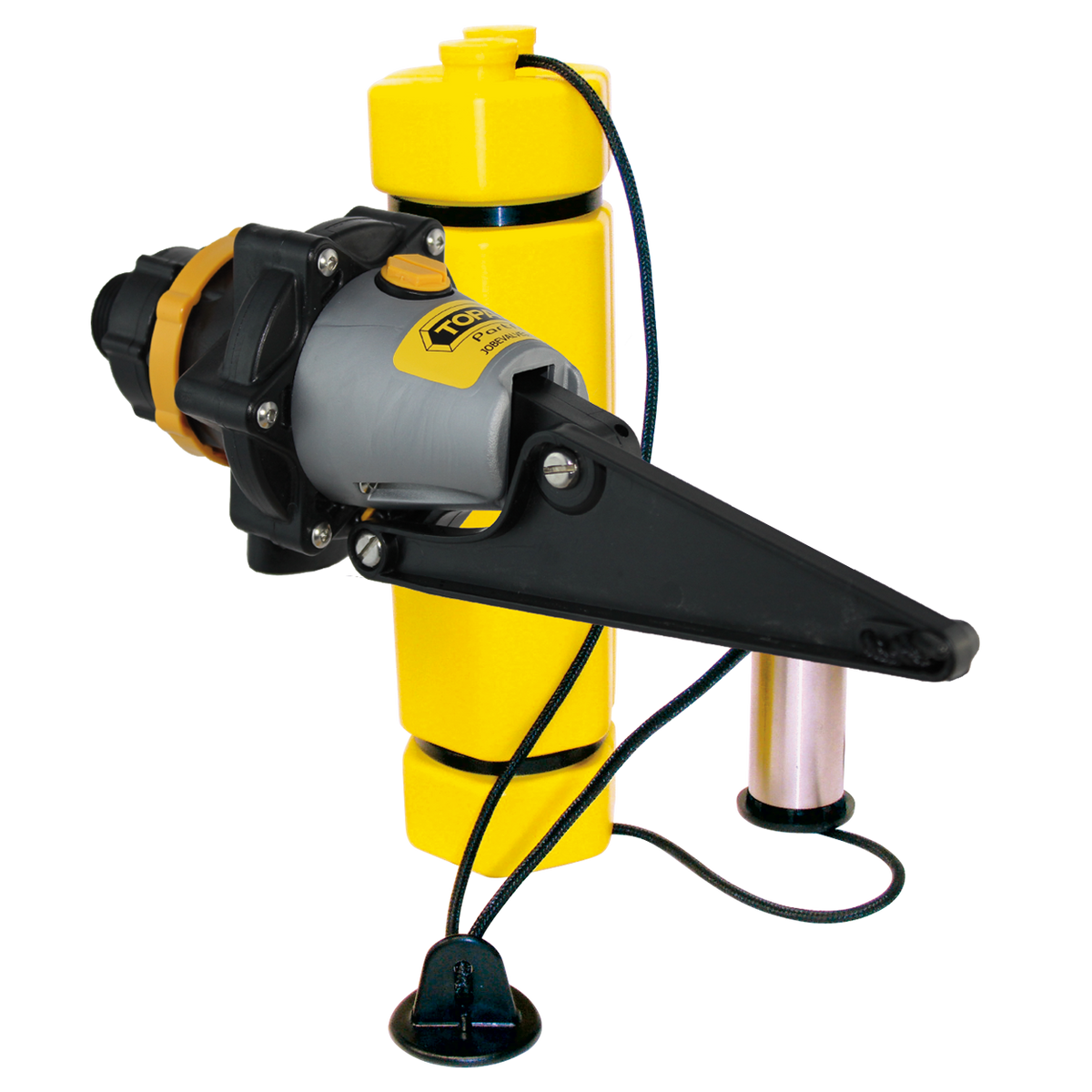

Jobe Topaz Differential float valve with weighted float and cord
  • Jobe Topaz Differential float valve with weighted float and cord
  • Jobe Topaz Differential float valve with weighted float and cord
  • Jobe Topaz Differential Float Valve
  • Jobe Topaz Differential Float Valve
  • Jobe Topaz Differential Float Valve
Need help choosing? Call Us: 1-888-251-3934

Check the estimated time of arrival for your order.

Usually ships in 1-2 business days

Jobe Topaz Differential Float Valve

Jobe Topaz Differential Float Valve

$294.25
$294.25
Size/Connection
Need help choosing? Call Us: 1-888-251-3934

Check the estimated time of arrival for your order.

Usually ships in 1-2 business days

Jobe Topaz Differential Float Valve – Water Tank Float Valve for Pump-Filled Storage Tanks

Ships directly from the manufacturer.

The Jobe Topaz Differential Float Valve is a high-flow water tank float valve made for storage tanks filled by a pressure-system-controlled pump. Instead of opening a little every time the level drops, it holds shut across an adjustable level difference from 2" up to 8.2 ft (50mm–2.5m) — so your pump starts and stops far less often.

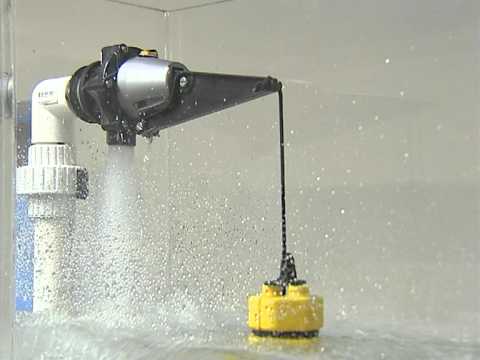

Here's how it works: as the tank empties, a weighted float travels down its cord until it hits the bottom stop, and the valve opens immediately to full flow. The valve stays open while the tank fills and the float rises to the upper stop, which lifts the arm and shuts the valve down. You set both the start and stop levels.

The Differential mounts at the top of the tank — it fits easily through a thin-walled tank or screws into a threaded tank inlet — and Jobe rates it for all makes and models of tanks. It's available in 1/2", 3/4", 1" and 1-1/4" inlets, all supplied with a Detach long tail, backnut and seal washer.

Jobe's patented Detach Valve Seal Access System gives quick access to the valve seal, and the valve is built from glass-filled nylon with 304 stainless steel hardware for water storage tanks, cisterns and irrigation systems.

Features

Adjustable Level Differential
Set start and stop levels anywhere from 2" to 8.2 ft (50mm–2.5m).

Keeps Pump Operation to a Minimum
Fewer pump starts and stops on pressure-switch controlled systems.

Opens to Full Flow
When the float reaches the bottom stop, the valve opens immediately to full flow.

Top-of-Tank Mounting
Fits through a thin-walled tank or screws into a threaded tank inlet.

Detach Valve Seal Access
Jobe's patented Detach system gives quick access to the valve seal.

Which Size Is Right for You?

1/2" Long Tail
3-15/16" thread length, with backnut and seal washer.

3/4" Long Tail
1-13/16" thread length, with backnut and seal washer.

1" Long Tail
2-7/16" thread length, with backnut and seal washer. More flow than the 3/4" at the same pressure.

1-1/4" Long Tail
2-21/32" thread length, with backnut and seal washer. The largest inlet, with more flow than the 3/4" at the same pressure.

Specifications

Inlet Sizes: 1/2", 3/4", 1", 1-1/4" (Detach long tail)
Long Tail Thread Length: 1/2" – 3-15/16" | 3/4" – 1-13/16" | 1" – 2-7/16" | 1-1/4" – 2-21/32" (backnut & seal washer included)
Operating Pressure: 15–150 psi (1–10 bar)
Max Temperature: 140°F (60°C)
Level Differential: Adjustable, 2" to 8.2 ft (50mm–2.5m)
Mounting: Top of tank
Materials: Glass-filled nylon body, EPDM diaphragm, TPU seal, HDPE float, 304 stainless steel hardware

Jobe Topaz Differential Spec Sheet (PDF)

Frequently Asked Questions

What is a differential float valve?
It lets the tank drop a set amount before refilling, then fills all the way back up — instead of topping up constantly. That keeps a pressure-switch pump from starting and stopping over and over.

How should I set my pump's pressure switch?
Jobe recommends watching the pressure your pump runs at while the tank fills, then setting the pressure switch to turn the pump off at least 1 bar (about 15 psi) above that running pressure.

Will it work on a low-pressure gravity system?
The Differential is rated from 15 psi (1 bar) to 150 psi (10 bar) and is designed for pump-filled tanks. For low-pressure troughs, see the Jobe Topaz Float Valve.

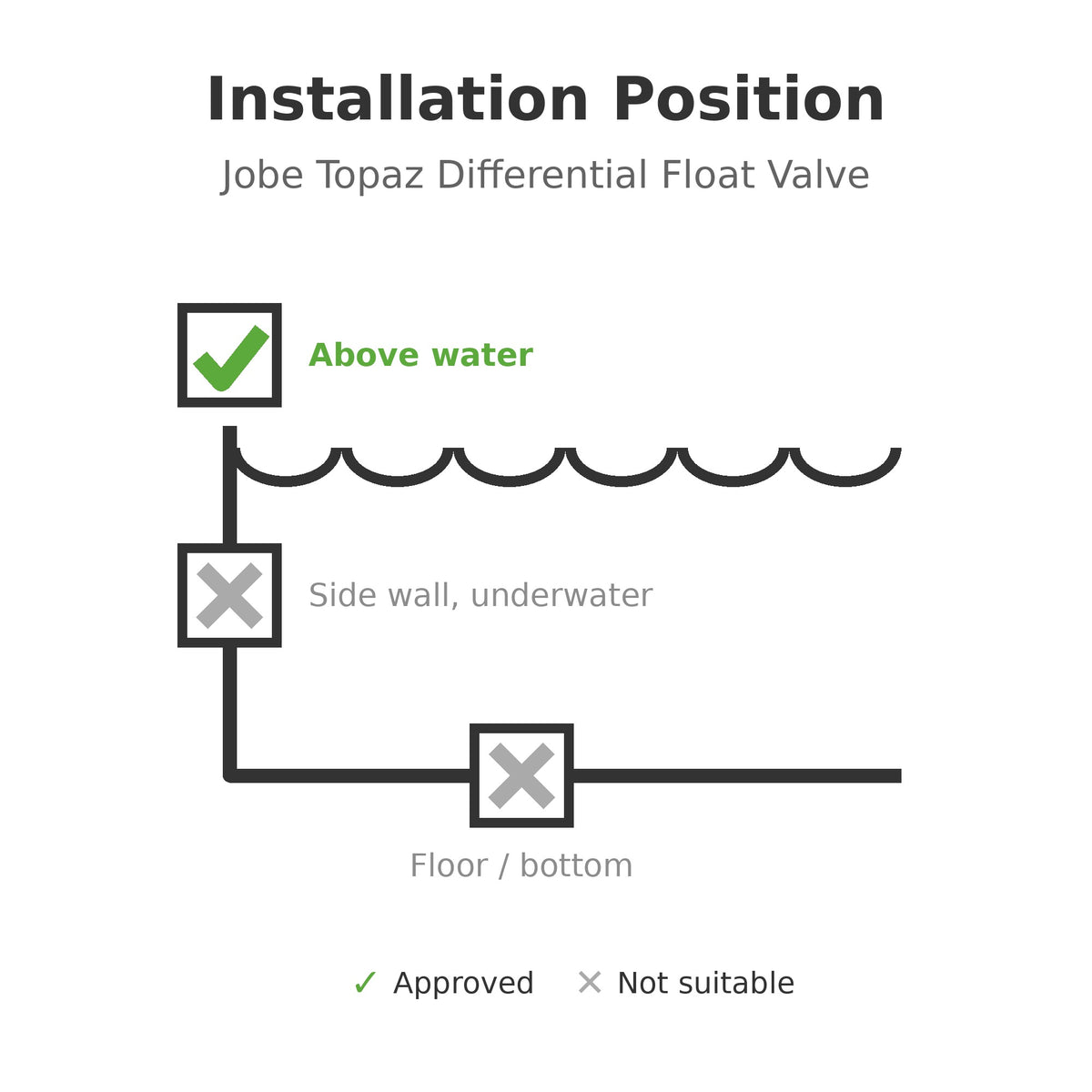

Where does it mount?
At the top of the tank — through a thin-walled tank or into a threaded tank inlet.

Fewer pump starts, full refills every cycle — the Jobe Topaz Differential keeps your storage tank and your pump working smarter.

Frequently bought Together

Jobe Detach Seal Access Connector (CNV20)

Jobe Detach Seal Access Connector (CNV20) – Precision Sea...

$26.40
Jobe Detach Seal Access Connector (CNV20)

Quick Coupler Valve

3/4" Quick Coupler Valve – Fast, Reliable Water Access Wh...

$17.95
Quick Coupler Valve - Powerflex

Riser Valve for Quick Coupler - Powerflex

3/4" Riser Valve for Quick Coupler – Powerflex | Extend Y...

$6.76
Riser Valve for Quick Coupler

Jobe Megaflow Water Valve - 3/4" Long Tail

Jobe Megaflow 3/4" Long Tail Trough Valve – High-Flow Und...

$76.07
Jobe Megaflow Water Valve - 3/4" Long Tail

Jobe Megaflow Water Valve - 1" Short Tail

Jobe Megaflow 1" Short Tail Trough Valve – High-Flow Unde...

$78.43
Jobe Megaflow Water Valve - 1" Short Tail

Jobe Valve2Hose Adaptor 3/4" FGHT x 3/4" FNPT

Jobe Valve2Hose Adaptor: 3/4" Garden Hose to 3/4" NPT Shi...

$11.32
Jobe Valve2Hose Adaptor 3/4" FGHT x 3/4" FNPT

Jobe Megaflow Water Valve - 1" Long Tail

Jobe Megaflow 1" Long Tail Trough Valve – High-Flow Under...

$77.33
Jobe Megaflow Water Valve - 1" Long Tail

Water Trough Valve - 3/4"

Water Trough Valve – 3/4" | Dependable Automatic Fill Con...

$60.10
Philmac Trough Valve - Powerflex

Jobe Megaflow Water Valve 1-1/4" Short Tail

Jobe Megaflow 1-1/4" Short Tail Trough Valve – High-Flow ...

$79.97
Jobe Megaflow Water Valve 1-1/4" Short Tail

Jobe Megaflow Yellow Actuator Tab

Jobe Megaflow Yellow Actuator Tab – The Replacement Part ...

$3.58
Jobe Megaflow Yellow Actuator Tab | Powerflex

Jobe TankMount Adaptor 3/4" FGHT x 3/4" FNPT

Jobe TankMount Adaptor: Mount a 3/4" Float Valve with a G...

$25.58
Jobe TankMount Adaptor 3/4" FGHT x 3/4" FNPT

Jobe Service Kit (Diaphragm Assembly) for Topaz & Megaflow Valves

Jobe Service Kit – Diaphragm Assembly for Topaz & Meg...

$22.43
Jobe Service Kit (Diaphram Assembly) for Topaz & Megaflow Valves

Philmac Brass Water Trough Valve – 3/4"

Brass Durability for Reliable Automatic Trough Filling — ...

$97.39
Philmac Brass Water Trough Valve - 3/4'' - Powerflex

Jobe Megaflow Detach Locking Ring

Jobe Megaflow Detach Locking Ring – Secure Your Detachabl...

$6.98
Jobe Megaflow Detach Locking Ring - Powerflex

Detach O-Ring (1-5/8" ID x 1-7/8" OD, N70)

Item # J-DTP4 Detach O-Ring 1-7/8" for Jobe Valves

$2.14
Detach O - Ring (1 - 5/8" ID x 1 - 7/8" OD, N70) - Powerflex

Jobe Megaflow Trough Valve

Jobe Megaflow Trough Valve – High-Flow Underwater Float V...

$76.07
Jobe Megaflow Trough Valve

Jobe Topaz Float Valve - 1-1/4" Long Tail

Jobe Topaz 1-1/4" Long Tail Float Valve – Largest-Inlet T...

$112.75
A black and yellow automatic water fountain sprinkler head with a large yellow spherical float, shown on a solid white background.

Jobe Topaz Float Valve - 1-1/4" Short Tail

Jobe Topaz 1-1/4" Short Tail Float Valve – Largest-Inlet ...

$110.00
A black and yellow automatic water fountain sprinkler head with a large yellow spherical float, shown on a solid white background.

Jobe Topaz Float Valve - 3/4" Long Tail

Jobe Topaz 3/4" Long Tail Float Valve – Through-Wall Wate...

$107.46
Jobe Topaz Float Valve - 3/4" Long Tail

Jobe Topaz Float Valve - 3/4" Short Tail

Jobe Topaz 3/4" Short Tail Float Valve – Compact Water Tr...

$103.57
A black and yellow automatic water fountain sprinkler head with a large yellow spherical float, shown on a solid white background.

Jobe Topaz Float Valve - 1" Long Tail

Jobe Topaz 1" Long Tail Float Valve – High-Flow Trough Va...

$110.00
A black and yellow automatic water fountain sprinkler head with a large yellow spherical float, shown on a solid white background.

Jobe Rojo Partfill Float Valve

Jobe Rojo Partfill Float Valve – Low-Flow Top-Up Valve fo...

$131.99
Jobe Rojo Partfill Float Valve

Jobe Topaz Partfill Float Valve

Jobe Topaz Partfill Float Valve – Water Tank Float Valve ...

$267.72
obe Topaz Partfill float valve with weighted float and cord

Jobe Topaz Industro Float Valve

Jobe Topaz Industro Float Valve – High-Temperature Indust...

$0.00
Jobe Topaz Industro Float Valve

Jobe Topaz Float Valve - 1" Detach Short Tail

Jobe Topaz 1" Detach Short Tail Float Valve – High-Flow T...

$103.57
A black and yellow automatic water fountain sprinkler head with a large yellow spherical float, shown on a solid white background.

Jobe Megaflow Valve 1-1/4" with Detachable Long Tail

Jobe Megaflow Valve – 1-1/4" Detachable Long Tail | Maxim...

$83.88
Jobe Megaflow Valve 1-1/4" with Detachable Long Tail

Jobe Detach Seal Access Connector (CNV20)

Jobe Detach Seal Access Connector (CNV20) – Precision Sea...

$26.40
Jobe Detach Seal Access Connector (CNV20)

Quick Coupler Valve

3/4" Quick Coupler Valve – Fast, Reliable Water Access Wh...

$17.95
Quick Coupler Valve - Powerflex

Riser Valve for Quick Coupler - Powerflex

3/4" Riser Valve for Quick Coupler – Powerflex | Extend Y...

$6.76
Riser Valve for Quick Coupler

Jobe Megaflow Water Valve - 3/4" Long Tail

Jobe Megaflow 3/4" Long Tail Trough Valve – High-Flow Und...

$76.07
Jobe Megaflow Water Valve - 3/4" Long Tail

Jobe Megaflow Water Valve - 1" Short Tail

Jobe Megaflow 1" Short Tail Trough Valve – High-Flow Unde...

$78.43
Jobe Megaflow Water Valve - 1" Short Tail

Jobe Megaflow Water Valve - 1" Long Tail

Jobe Megaflow 1" Long Tail Trough Valve – High-Flow Under...

$77.33
Jobe Megaflow Water Valve - 1" Long Tail

Jobe Megaflow Water Valve 1-1/4" Short Tail

Jobe Megaflow 1-1/4" Short Tail Trough Valve – High-Flow ...

$79.97
Jobe Megaflow Water Valve 1-1/4" Short Tail

Jobe Valve2Hose Adaptor 3/4" FGHT x 3/4" FNPT

Jobe Valve2Hose Adaptor: 3/4" Garden Hose to 3/4" NPT Shi...

$11.32
Jobe Valve2Hose Adaptor 3/4" FGHT x 3/4" FNPT

Jobe TankMount Adaptor 3/4" FGHT x 3/4" FNPT

Jobe TankMount Adaptor: Mount a 3/4" Float Valve with a G...

$25.58
Jobe TankMount Adaptor 3/4" FGHT x 3/4" FNPT

Water Trough Valve - 3/4"

Water Trough Valve – 3/4" | Dependable Automatic Fill Con...

$60.10
Philmac Trough Valve - Powerflex

Jobe Megaflow Yellow Actuator Tab

Jobe Megaflow Yellow Actuator Tab – The Replacement Part ...

$3.58
Jobe Megaflow Yellow Actuator Tab | Powerflex

Jobe Service Kit (Diaphragm Assembly) for Topaz & Megaflow Valves

Jobe Service Kit – Diaphragm Assembly for Topaz & Meg...

$22.43
Jobe Service Kit (Diaphram Assembly) for Topaz & Megaflow Valves

Philmac Brass Water Trough Valve – 3/4"

Brass Durability for Reliable Automatic Trough Filling — ...

$97.39
Philmac Brass Water Trough Valve - 3/4'' - Powerflex

Jobe Megaflow Detach Locking Ring

Jobe Megaflow Detach Locking Ring – Secure Your Detachabl...

$6.98
Jobe Megaflow Detach Locking Ring - Powerflex

Detach O-Ring (1-5/8" ID x 1-7/8" OD, N70)

Item # J-DTP4 Detach O-Ring 1-7/8" for Jobe Valves

$2.14
Detach O - Ring (1 - 5/8" ID x 1 - 7/8" OD, N70) - Powerflex

Jobe Topaz Float Valve - 1-1/4" Long Tail

Jobe Topaz 1-1/4" Long Tail Float Valve – Largest-Inlet T...

$112.75
A black and yellow automatic water fountain sprinkler head with a large yellow spherical float, shown on a solid white background.

Jobe Topaz Float Valve - 1-1/4" Short Tail

Jobe Topaz 1-1/4" Short Tail Float Valve – Largest-Inlet ...

$110.00
A black and yellow automatic water fountain sprinkler head with a large yellow spherical float, shown on a solid white background.

Jobe Topaz Float Valve - 3/4" Long Tail

Jobe Topaz 3/4" Long Tail Float Valve – Through-Wall Wate...

$107.46
Jobe Topaz Float Valve - 3/4" Long Tail

Jobe Topaz Float Valve - 3/4" Short Tail

Jobe Topaz 3/4" Short Tail Float Valve – Compact Water Tr...

$103.57
A black and yellow automatic water fountain sprinkler head with a large yellow spherical float, shown on a solid white background.

Jobe Topaz Float Valve - 1" Long Tail

Jobe Topaz 1" Long Tail Float Valve – High-Flow Trough Va...

$110.00
A black and yellow automatic water fountain sprinkler head with a large yellow spherical float, shown on a solid white background.

Jobe Megaflow Valve 1-1/4" with Detachable Long Tail

Jobe Megaflow Valve – 1-1/4" Detachable Long Tail | Maxim...

$83.88
Jobe Megaflow Valve 1-1/4" with Detachable Long Tail

Jobe Topaz Float Valve - 1" Detach Short Tail

Jobe Topaz 1" Detach Short Tail Float Valve – High-Flow T...

$103.57
A black and yellow automatic water fountain sprinkler head with a large yellow spherical float, shown on a solid white background.

Jobe Topaz Industro Float Valve

Jobe Topaz Industro Float Valve – High-Temperature Indust...

$0.00
Jobe Topaz Industro Float Valve

Jobe Topaz Partfill Float Valve

Jobe Topaz Partfill Float Valve – Water Tank Float Valve ...

$267.72
obe Topaz Partfill float valve with weighted float and cord

Jobe Rojo Partfill Float Valve

Jobe Rojo Partfill Float Valve – Low-Flow Top-Up Valve fo...

$131.99
Jobe Rojo Partfill Float Valve

Jobe Topaz Float Valve

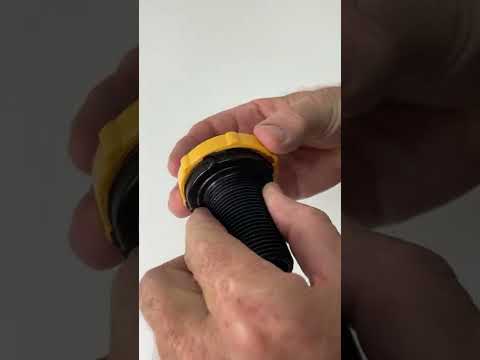

Jobe Topaz Float Valve – High-Flow Water Trough Valve for...

$103.57
A black and yellow automatic water fountain sprinkler head with a large yellow spherical float, shown on a solid white background.

Jobe Megaflow Trough Valve

Jobe Megaflow Trough Valve – High-Flow Underwater Float V...

$76.07
Jobe Megaflow Trough Valve

Real Use Cases

Shane P

Great quality Ploybraid and good for about 4-5 years year round application with uv exposure.
★★★★★
Rotational Grazing

Seth M

This is my second purchase of the super 9 polybraid, and it sure won’t be the last. Compared to the other poly wire products I’ve used, this braid is so much more durable, easily visible to the livestock, and VERY conductive. The smooth braid is much smoother to reel in than the other poly wires I’ve used, and for almost a year I’ve been moving cows with this wire at least three days a week. Still going strong with no viable signs of wear. I highly recommend this product. 5 stars for sure
★★★★★
Perimeter Fencing

Jody W

It is working great. Running on a deep cycle battery that drops to 50-60% in 4 days on electric netting. 8-10k volts on poly rope and 4-6k volts on the netting.
★★★★★

Rick

This Range Ward — Power Reel saves me so much time and headache. I wish I would have made this purchase years ago. Just attach it to your side by side and go. It's that simple.
★★★★★
Rotational Grazing

Ready to Get Started?
Call us. We'll help you figure out what you need. No sales pitch.
SHOP PRODUCTS CALL: 1-888-2513934

MONDAY - FRIDAY, 8:30AM - 5PM CST
