Jobe Vortex Bottom Fill Float Valve
$311.94
Sale price
$311.94
Regular price
Need help choosing?
Call Us: 1-888-251-3934
Check the estimated time of arrival for your order.
Usually ships in 1-2 business days
Jobe Vortex Bottom Fill Float Valve – High-Flow Underwater Trough Valve
Ships directly from the manufacturer.

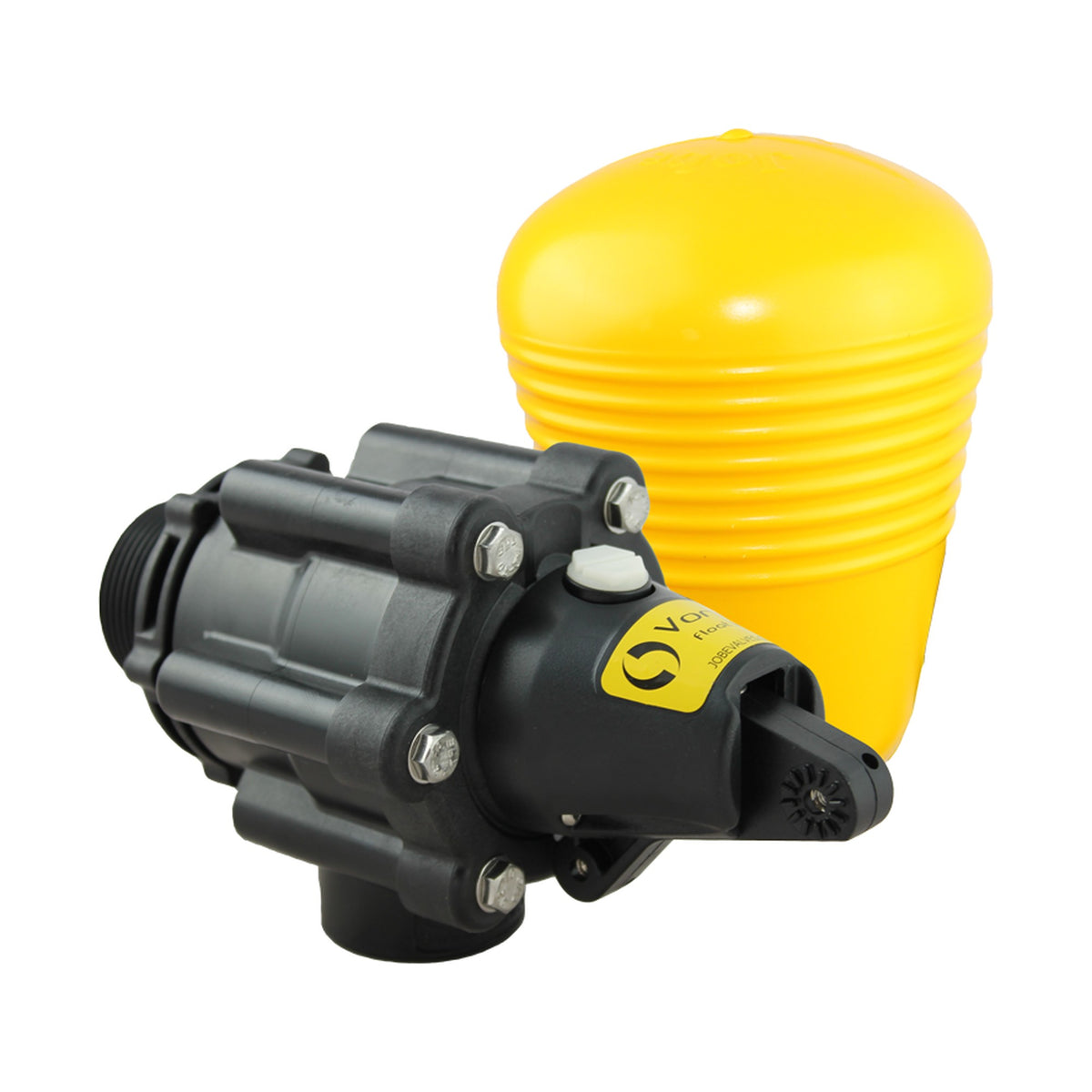

The Jobe Vortex Bottom Fill Float Valve is a high-flow water trough float valve for the automatic filling of livestock troughs and water storage tanks. It's configured for underwater mounting only, side or bottom entry, and Jobe rates the Vortex range at 600 L/min (about 158 gpm).

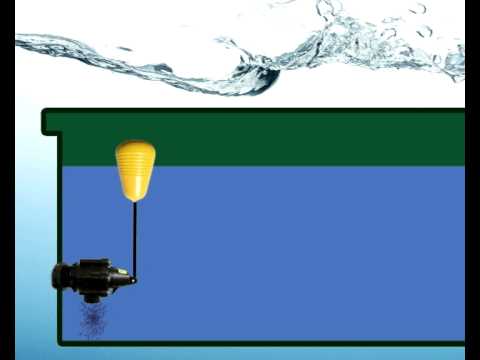

A tapered float on a nylon cord opens a small pilot valve when the water level drops, which activates the main diaphragm valve. It shuts down slowly to help minimize water hammer, and holds your water level within a 3/4"–2-1/2" range that increases as inlet pressure increases.
Jobe calls the Vortex a good choice wherever high flow and compact, robust, non-corrosive construction are needed. The valve unscrews from the tail for easy valve seal access, the float sets by hand with no tools, a built-in switch locks it off, and a port accepts Jobe's FrostPro anti-freeze device (sold separately). Available in 1-1/4", 1-1/2" and 2" inlets.
Features
Underwater Mounting
Side or bottom entry, below the water line.
Rated at 600 L/min
Jobe's high-flow rating for the Vortex range.
Easy Seal Access
The valve unscrews from the tail for quick access to the valve seal.
Gradual Shut-Off
Shuts down slowly to help minimize water hammer in your lines.
Tool-Free Adjustment & Lock Switch
Set the float position by hand, and lock the valve off when you need to.
Specifications
Inlet Sizes: 1-1/4", 1-1/2", 2"
Rated Flow: 600 L/min (about 158 gpm)
Operating Pressure: 5–100 psi (0.3–7 bar)
Max Temperature: 140°F (60°C)
Water Level Differential: 3/4"–2-1/2" (20–60mm), increases with inlet pressure

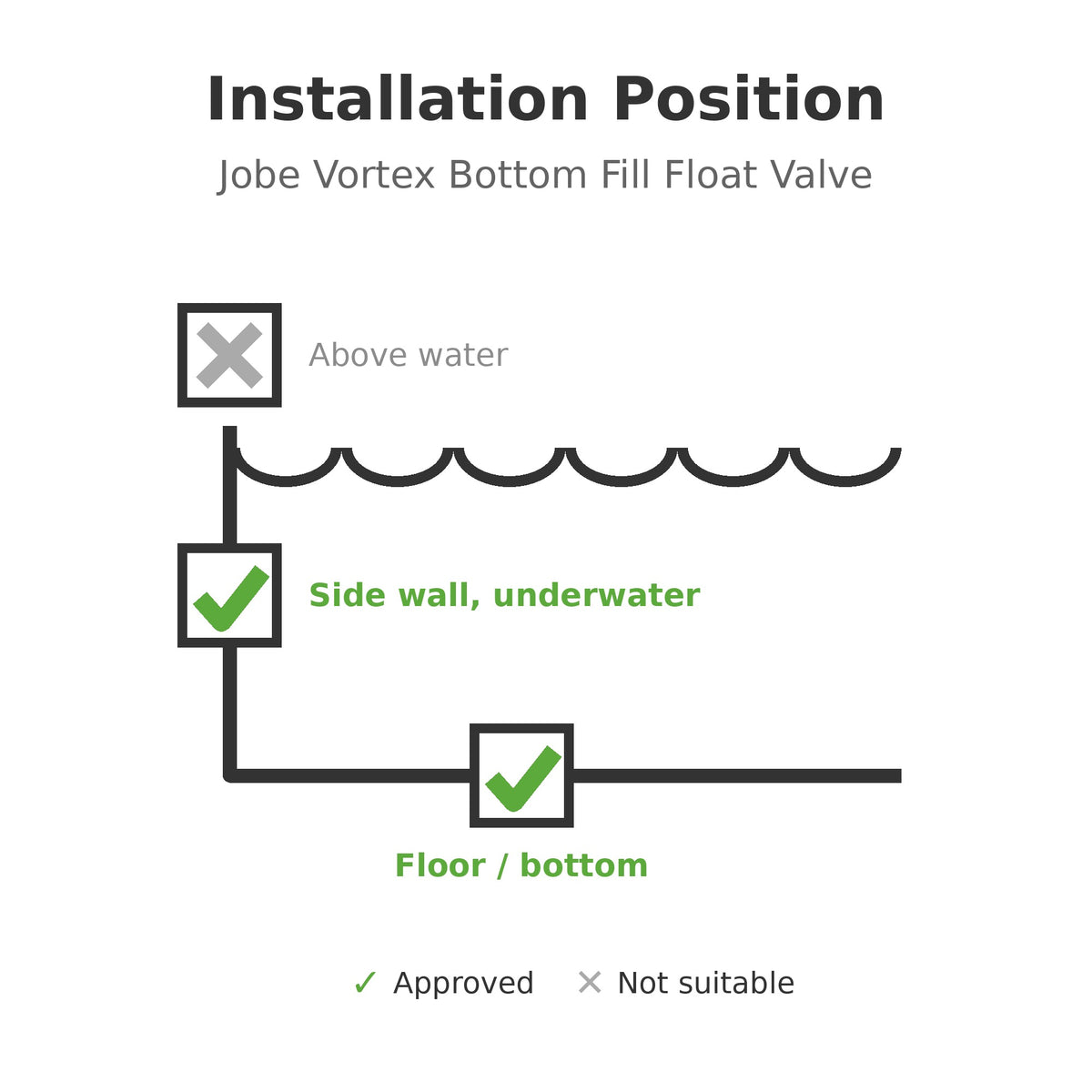

Mounting: Underwater only — side or bottom entry (not for top mounting)
Float: Tapered HDPE float (standard)
Materials: Glass-filled nylon body, EPDM diaphragm, TPU seal, HDPE float, 304 stainless steel hardware
Jobe Vortex Bottom Fill Spec Sheet (PDF)
Frequently Asked Questions
Can it be mounted above water?
No. The Bottom Fill is for underwater mounting only (side or bottom entry). For above-water mounting, Jobe makes the standard Vortex Float Valve.
Is underwater mounting allowed where I am?
Jobe recommends checking that underwater mounting is allowed by your local regulations before installing.
Need a smaller inlet?
For underwater mounting in 1/2" to 1-1/4" sizes, Jobe's Megaflow Trough Valve is the smaller option.
Big flow, mounted below the water line — the Jobe Vortex Bottom Fill keeps high-demand troughs full.
